Introduction :

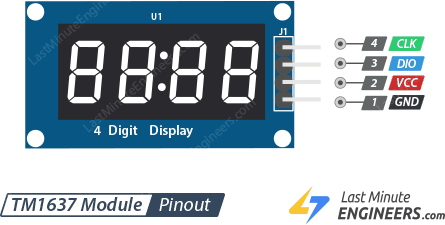

 TM1637 module is a popular 4-digit seven-segment LED display module that is commonly used with Arduino boards for displaying numeric data. It communicates with the Arduino board using a two-wire interface (CLK and DIO) and can display numbers, letters, and a few special characters.
This module is a pre-built board that basically includes the TM1637 driver IC and a 4-digit seven-segment LED display.

TM1637 Driver IC features:
The TM1637 display module has several features that make it useful for a variety of applications, including:

  • Low power consumption: The driver IC can operate at a low voltage of 3.3V and has a low power consumption (typical operating voltage is always 5V), making it suitable for battery-powered applications.
  • Built-in oscillator: The TM1637 has a built-in RC oscillator that can generate a signal for the display without requiring an external crystal or clock source.
  • Brightness control: The TM1637 has a built-in 8-level brightness control function that can be adjusted through software.
  • Flexible interface: The two-wire interface used by the TM1637 is simple and easy to use, allowing it to be connected to a variety of microcontrollers.

The TM1637 is commonly used in various applications such as digital clocks, timers, and scoreboards. Its simplicity and ease of use make it a popular choice for hobbyists and makers. Additionally, there are many libraries and code examples available for using this type of display with various microcontrollers, making it easy to get started with.

This tutorial shows how to interface the Arduino board with the TM1637 4-digit seven-segment display module, just an incremented number is printed on the display. We’ll see also Proteus simulation of this project.
